A brief introduction to microphones for the home recording studio

by David Mellor
FREE EBOOK DOWNLOAD ► LEARN AUDIO ONLINE ►

Large-diaphragm capacitor microphones

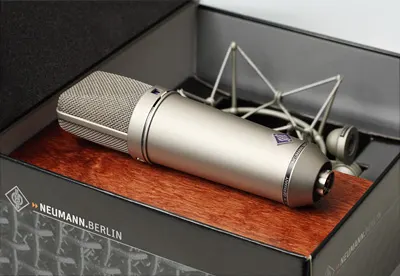

Neumann U87 large diaphragm capacitor microphone

This is the microphone that you will use unless you have a specific reason to use something else. 'Capacitor' means that it works on the principle of electrostatics. 'Large-diaphragm' means, obviously, that it has a large diameter diaphragm rather than a small one. Large-diaphragm mics tend to have a flattering sound and make anything you record slightly more impressive than it is in real life. Classic large-diaphragm capacitor mics are the AKG C414 and Neumann U87, which have both been available for over thirty years in various forms. These are expensive microphones, but much less costly large-diaphragm mics are available that are capable of excellent results.

Dynamic microphone

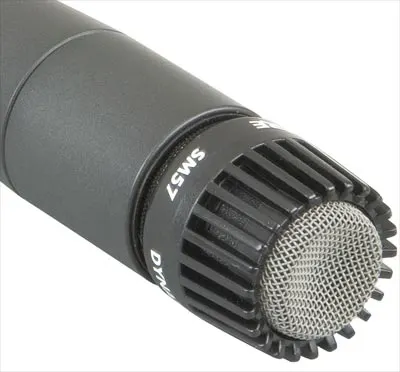

Shure SM57 dynamic microphone

The dynamic microphone works on the same principle as an electrical generator, or dynamo. Where capacitor mics tend to capture a bright and detailed sound, the dynamic captures a sound that is less bright, less detailed, but with a satisfying sense of fullness, particularly on guitar cabinets and drums. The classic dynamic microphone is without doubt the Shure SM57, which can be found in almost every professional studio, often in sufficient quantity to mic up each drum of even a large drum set individually. Fortunately, the SM57 is not an expensive microphone and, in this respect, full professional quality is practical for any home recording studio owner to aspire to. The Shure SM58 is basically the same design, but with a large mesh grille. It is often used for vocals in live sound.

Vacuum-tube microphone

Audio Masterclass Video Courses

Learn FAST With Audio Masterclass Video Courses

With more than 900 courses on all topics audio, including almost every DAW on the market, these courses are your fast track to audio mastery.
Get a library pass for all 900+ courses for just $25.

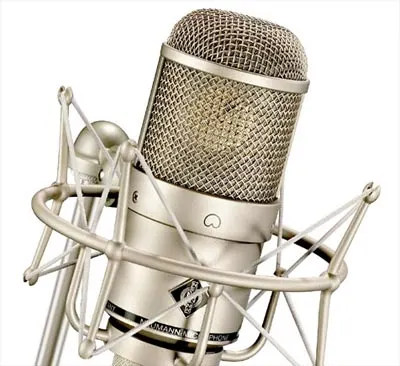

Neumann M147 vacuum-tube microphone

To give this its full title, it is the large-diaphragm, vacuum-tube capacitor microphone, although it is generally known as a 'tube mic' for short. The difference between this and the normal large-diaphragm capacitor microphone is that where the normal capacitor mic has an internal transistor amplifier, the tube mic has an internal vacuum-tube amplifier. This produces a lovely sheen on the sound that is particularly appropriate for vocals. There are a number of excellent vacuum-tube microphones available. One such is the Neumann M147. It is expensive, but less costly vacuum-tube microphones are also available.

Small-diaphragm capacitor microphone

The Audio Masterclass Pro Home Studio MiniCourse

FREE MINICOURSE

Great home recording starts with a great plan. The Audio Masterclass Pro Home Studio MiniCourse will clear your mind and set you on the right path to success, in just five minutes or less.

Neumann KM184 small-diaphragm capactitor microphone

These mics are sometimes known as 'pencil mics' because of their slim cylindrical shape, although they are never quite as thin as a normal pencil. This is the most accurate microphone design and would be used if you wanted to capture an instrument exactly as it sounds in real life, without any flattery. A classic example of the small-diaphragm capacitor microphone is the Neumann K184, although once again less expensive models are available.

Detailed information on microphone techniques is available in Audio Masterclass courses.

Wednesday March 6, 2019

Like, follow, and comment on this article at Facebook, Twitter, Reddit, Instagram or the social network of your choice.

David Mellor

David Mellor

David Mellor is CEO and Course Director of Audio Masterclass. David has designed courses in audio education and training since 1986 and is the publisher and principal writer of Adventures In Audio.
